引用標(biāo)準(zhǔn)/Reference standards

IEC 61071 60068

工作溫度范圍/Operating temperature range

-40~85℃

容量范圍/Capacitance

10~50μF

額定電壓 /Rated Voltage

800-1200V.DC

容量偏差 /Tolerance

±10%

極間耐電壓 /Test voltage between terminals

1.5Ur(DC) 10s  25±5℃

極殼耐電壓 /Test voltage between terminals and case

2000V 50Hz 60S, 25±5℃

損耗角正切/Dissipation factor

tgδ≤6×10^-4 at 25±5℃ , 1KHz

絕緣電阻/Insulation resistance

C*IR≥30000S,   at  100VDC,25±5℃,60S

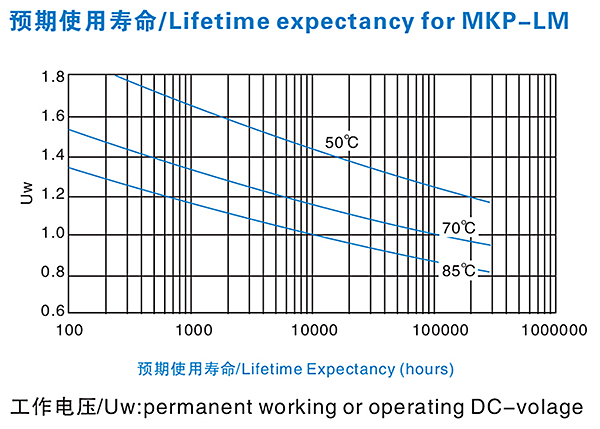

預(yù)期壽命/Life expectancy

100000h at Ur and 70℃
